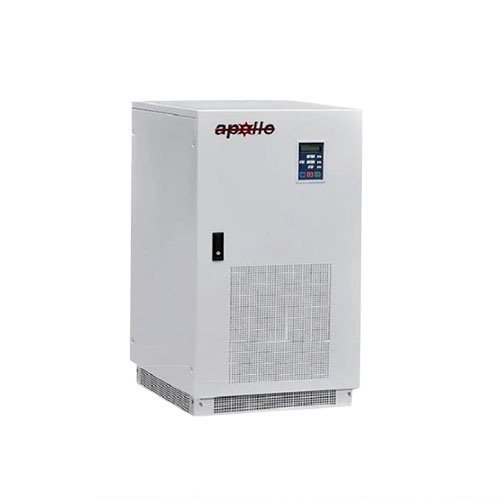

Apollo 2B15K-L 15000VA Online UPS
180,000.00৳
| Brand | Apollo |
| Product model | 2B15K-L |
| Warranty | 1 Year |
Description
| Display | |
| Display | LED: Input, Inverter, Bypass, Battery, Output, Status LCD: I/O voltage, frequency, power factor, battery voltage, current, battery status, load percentage,UPS status, history record |
| Networking & Connectivity | |
| Frequency | Operating frequency range: 50/60Hz (±5Hz) |
| Battery And Power | |
| Volt Ampere (VA) | (VA/Watts) 15KVA/ 13.5 KW |
| Efficiency (Approx.) | >89% |
| Rated Voltage | 200/220/230Vac |
| Battery Voltage | 384Vdc |
| Input | Voltage range: 380/400/415Vac (380-25% 415+20%), (3Ph+N+PE) |
| Output | frequency: 50/60Hz (± 0.05%) |
| Power | >0.9(with filter) |
| Ports | |
| Interface | Dry contact, RS232, RS485, SNMP card (Optional) |
| Special Features | |
| Protection | Voltage protection range: Upper limit: +20% (+10%, +15%, +20% adjustable) Lower limit: -40%, -20%, -30%, -40% adjustable) Frequency protection range: ± 10% (±2.5%, ±5%, ±10%, ±20% adjustable) |
| Physical Specification | |
| Humidity | <1500m |
| Temperature | Operating: 0~40°C Storage: -25°C ~ 55°C (non ─ condensing) |
| Dimension | 570 x 800 x 1195mm |
| Weight | 217 |
| Others | |
| Other Features | Harmonic distortion (THD) <3% (linear load) Crest factor 3:1 (Max.) Rated frequency: 50/60Hz Transfer time: Oms (Line mode ↔ Battery mode) Harmonic filter, SNMP adapter, LBS cables, battery temperature sensor, Bypass current-sharing inductor |
| Warranty Information | |
| Warranty | 1 Year |
