Dahua HAC-ME1200EP HDCVI Eyeball Camera

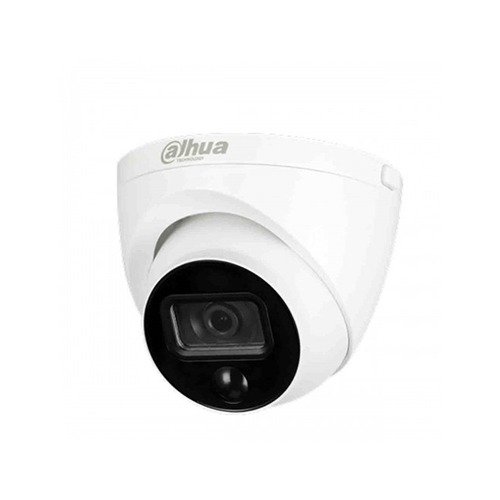

Dahua HAC-ME1200EP Camera

• Casing: Aluminium (Inner Core) + Plastic (Cover)
• Dimensions: Φ110mm×96.1mm(Φ4.33″×3.78″)
• Weight: 0.28 Kg
• Pan/Tilt/Rotation Pan: 0° ~ 360°
• Tilt: 0° ~ 90°
• Rotation: 0° ~ 360°
• Operating Conditions:  -10°C ~ +50°C (+14°F ~ +122°F) / Less than 95% RH
• Storage Conditions: -10°C ~ +50°C (+14°F ~ +122°F) / Less than 95% RH
• Power Supply: 12V DC ±30%
• Power Consumption: Max 3.9W (12V DC, IR on)

• Image Sensor: 1/2.7″ CMOS
• Effective Pixels: 1920(H)×1080(V), 2MP
• Scanning System: Progressive
• Electronic Shutter Speed PAL: 1/25~1/100000s
• NTSC: 1/30~1/100000s
• Minimum Illumination: 0.02Lux/F2.0(Color), 30IRE, 0Lux IR on
• S/N Ratio: More than 65dB
• IR Distance: Up to 20m (66feet)
• IR On/Off Control: Auto / Manual
• IR LEDs: 1

• Lens Type: Fixed lens / Fixed iris
• Mount Type: Board-in
• Focal Length: 3.6mm
• Max Aperture: F2.0
• Angle of View: H: 88°(112°)
• Close Focus Distance: 500mm (500mm)
  19.7” (19.7”)

• Resolution: 1080P (1920×1080)
• Frame Rate: 25/30fps@1080P, 25/30fps@720P
• Video Output: 1-channel BNC high definition video output / CVBS
• video output: (Can switch)
• Day/Night: Auto (ICR) / Manual
• BLC Mode: BLC / HLC / DWDR
• Gain Control: AGC
• Noise Reduction: 2D
