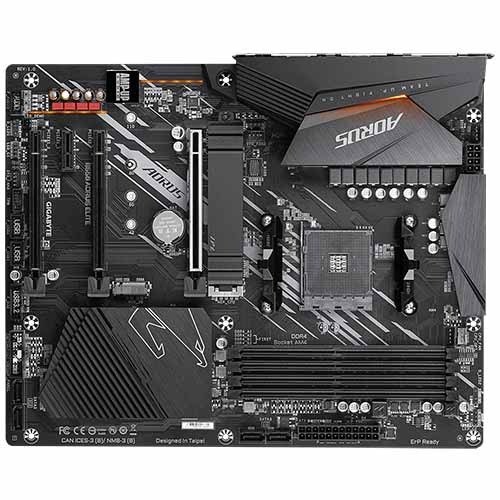

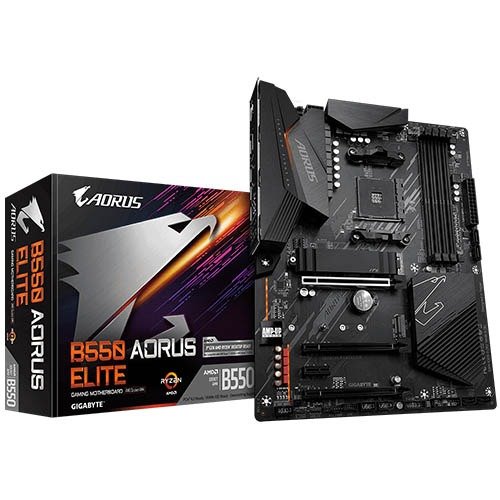

GIGABYTE B550 AORUS ELITE AMD Motherboard
26,500.00৳
| Brand | Gigabyte |
| Product model | B550 AORUS ELITE |
| Warranty | 3 years |
Description
| Processor | |
| Supported CPU | AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryzen™ with Radeon™ Graphics processors (Please refer “CPU Support List” for more information.) |
| Mainboard | |
| Chipset | AMD B550 |
| Memory | |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules New Generation AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support List” for more information.) |
| Storage | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: – 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs – New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: – Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: – Support for RAID 0, RAID 1, and RAID 10 |
| Graphics | |
| Graphics | Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB |
| Audio & Microphone | |
| Audio | Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Networking & Connectivity | |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Technical Info | |
| BIOS | 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0; |
| Ports | |
| Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode – New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: – Supporting PCIe 3.0 x2 mode 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset: – Supporting PCIe 3.0 x1 mode 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset: – Supporting PCIe 3.0 x1 mode |
| Internal I/O Ports | 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x CPU fan header; 1 x water cooling CPU fan header; 3 x system fan headers; 1 x CPU cooler LED strip/RGB LED strip header; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only); 1 x Clear CMOS jumper; |
| External I/O Ports | 1 x DisplayPort; 1 x HDMI port; 2 x USB 3.2 Gen 2 Type-A ports (red); 4 x USB 3.2 Gen 1 ports; 2 x USB 2.0/1.1 ports; 1 x Q-Flash Plus button; 1 x RJ-45 port; 1 x optical S/PDIF Out connector; 5 x audio jacks; |
| USB | CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel; 2 x USB 3.2 Gen 1 ports on the back panel; Chipset: 2 x USB 3.2 Gen 1 ports on the back panel; 2 x USB 3.2 Gen 1 ports available through the internal USB header; 2 x USB 2.0/1.1 ports on the back panel; Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers; |
| Physical Specification | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty Information | |
| Warranty | 03 Years |
