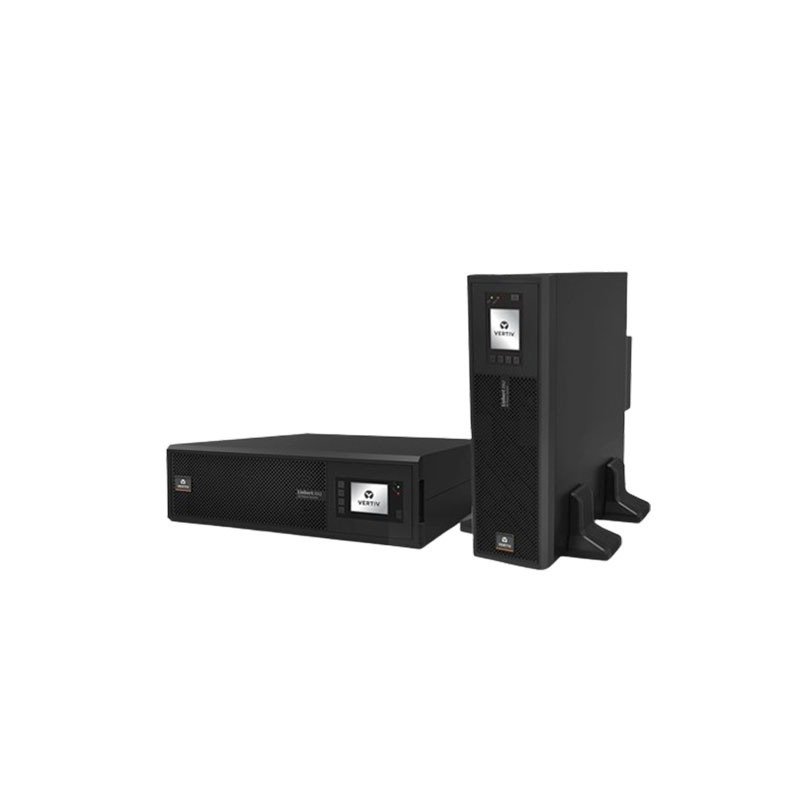

Vertiv Liebert ITA2 20KVA Online UPS
490,000.00৳
| Brand | Vertiv |
| Product model | Liebert ITA2 |
| Warranty | 1 Year |
Description
| Battery And Power | |
| Battery | Battery Type: Lead Acid Maintenance Free Charging Capability: 13A Battery Capacity: 12V-12Ah Backup time: Standard Backup No of Battery: 40 |
| Input | Rectifier Type: IGBT Rectifier Rated Voltage: 380/400/415 Vac Three Phase Four Wire Input Voltage Range: Three Phase 304Vac-498Vac Input Freq Range: 40 Hz-70Hz Input Power Factor: >=0.99 for Single Phase THDi: <5% |
| Output | Rated Power: 20KVA/20KW Rated Voltage: Three Phase 380/400/415 Vac and Single Phase 230/220 Vac. Output PF: Unity Voltage Stability: 1% Output Frequency: 50 Hz/ 60 Hz Frequency Precision: 0.25% Output Voltage THD: <2% for Linear Load and <5% for Non-Linear Load Load Crest Factor: 3:1 Comply with IEC 62040-3 Step Load: 1 Output Mode: Terminal Strip Programmable outlets: Yes Overload Performance (%): 105%-125% 5 Mins, 125%-150% 1Min, 500ms for >150% |
| Ports | |
| Interface Type | USB/Intelligent Slot ( Dry Contact Card/SIC Card/Modbus Card/RS485 Card SNMP card: Integrated with UPS Management: Site Monitor |
| Physical Specification | |
| Environmental | Operating Temp: 0-50° Celsius Relative Humidity : 0-95% without Condensation Max Altitude: <3000 meters Vehicle Mounting: Suitable for vehicle installation |
| Dimension | 435x500x130mm (3U) |
| Others | |
| Other Features | Conversion Type: Online Double Conversion Parallel Mode: 3+1 Installation Mode: Rack/Tower Convertible System Efficiency: 0.96 Switching Time: o msec Noise: >55dB LCD Display: Yes Safety: I EC/EN62040-1-1 Electromagnetic Compatibility: IEC/EN62040-2, IEC/EN61000-3-11, IEC/EN61000-3-12, YD/Tl095-2008 Surge Protection: IEC/EN62040-2, meeting IEC/EN61000-4-5 |
| Warranty Information | |
| Warranty | 1 Year (UPS), 6 Months (Battery) |
